Model courtesy of Hilliard Architects in San Francisco, CA.

• Viewer

  The default mode is a SketchUp™ model viewer. Incorporating the intuitive controls of the device, utilize a single finger to orbit around the model, a double finger swipe to pan, and two fingers to pinch zoom in and out. A double tap will reset the view.

• Augmented Reality

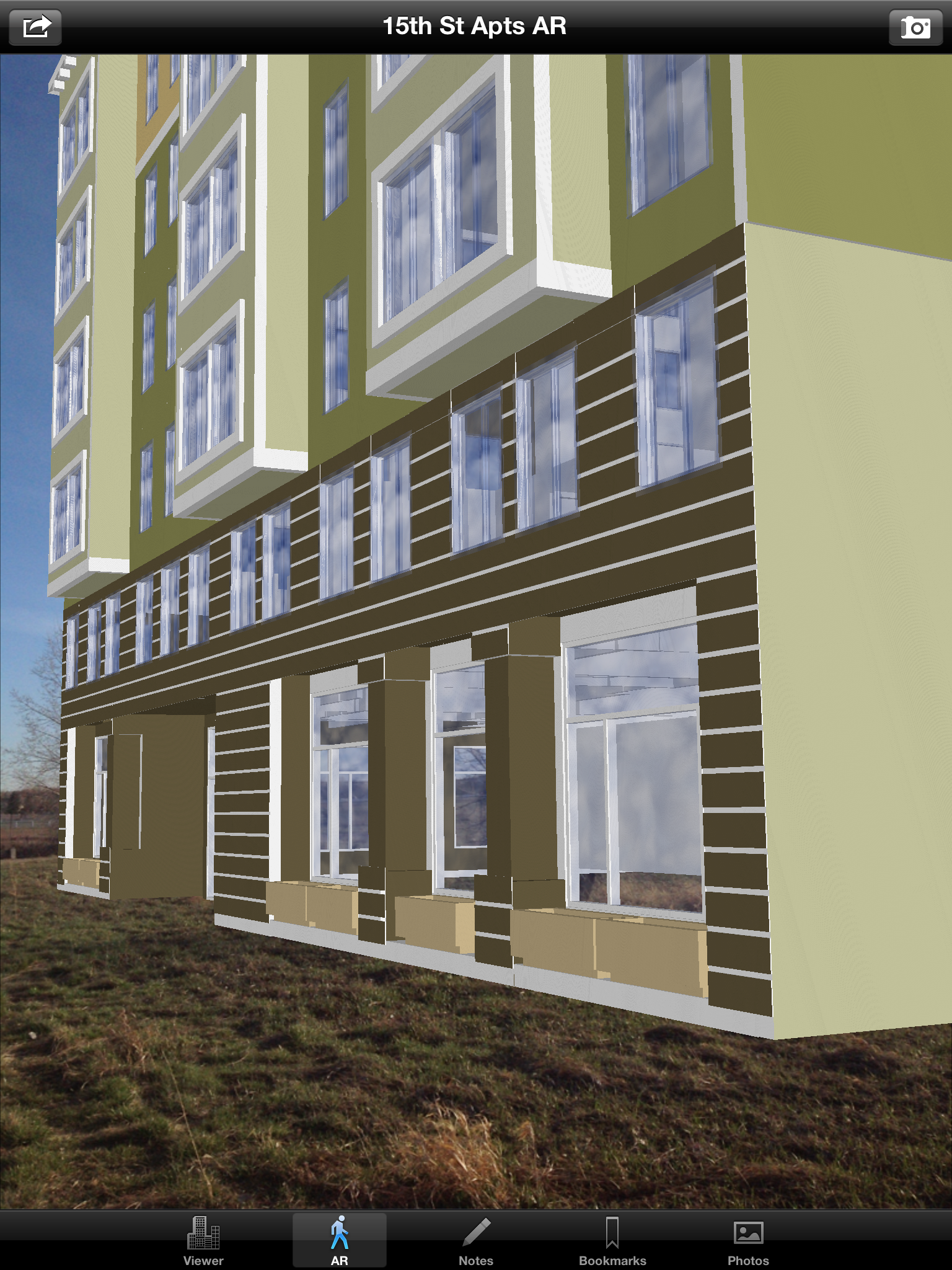

  Augmented Reality (AR) superimposes a virtual SketchUp model onto the real world and is only available on the iPad^® 2 and later and iPhone^® 4 and later. AR works because both the iOS device and SketchUp model are geolocated. To ensure on-site accuracy, check the following:

  • The SketchUp file must be geolocated
  • On-the-ground location accuracy is increased with a cellular connection - a wifi only connection will have a wider range of error
  • If there is no cellular or wifi connection, model can be manually located by tapping, dragging, and further adjusting

• Augmented Reality Tips

  Compass Interference

  • From time to time, the compass may need to be recalibrated to compensate for local magenetic fields. When this calibration is needed you will be presented with a request to move the device in a figure '8' motion. Move the device as instructed to calibrate the compass.
  • If the model appears to be in the wrong location, use the Maps application to ensure your device has you positioned correctly. You can also try moving the device away from any local magentic sources, pressing the Home key, and tapping on the SightSpace icon. This will re-initialize the augmented reality engine with an updated compass heading.

  Model Drift

  • Occasionally, the model may appear to drift from its location even though the device is not moving. This can be easily fixed by pressing the Home key and tapping on the SightSpace icon. This will re-initialize the augmented reality engine and re-position the model.

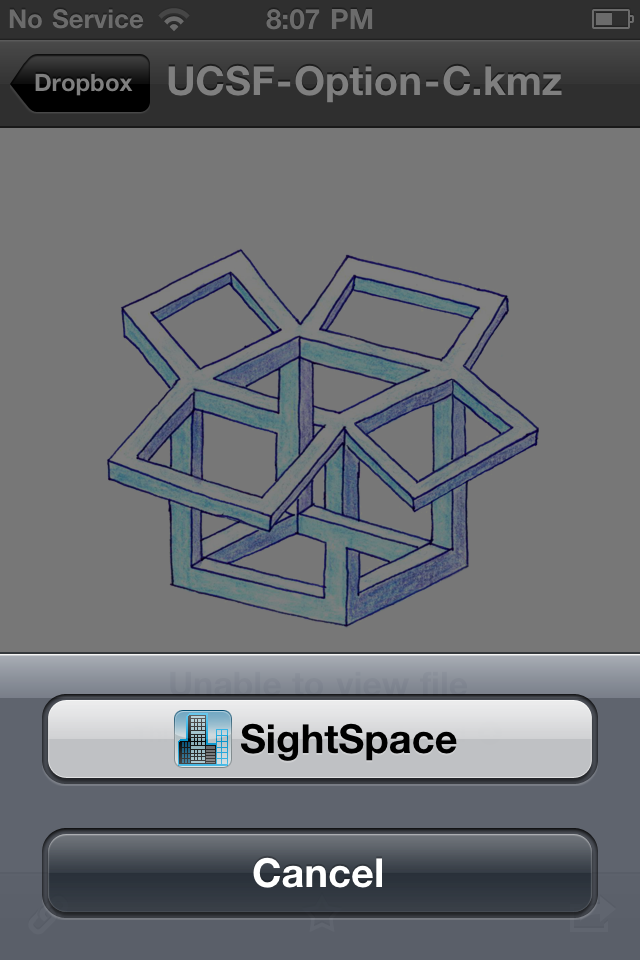

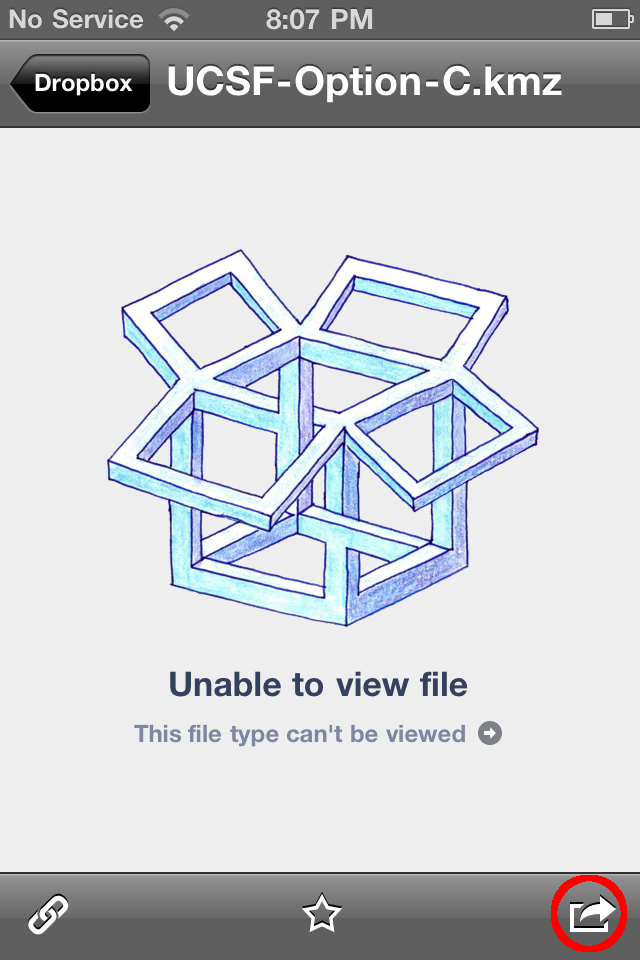

• Opening from Dropbox

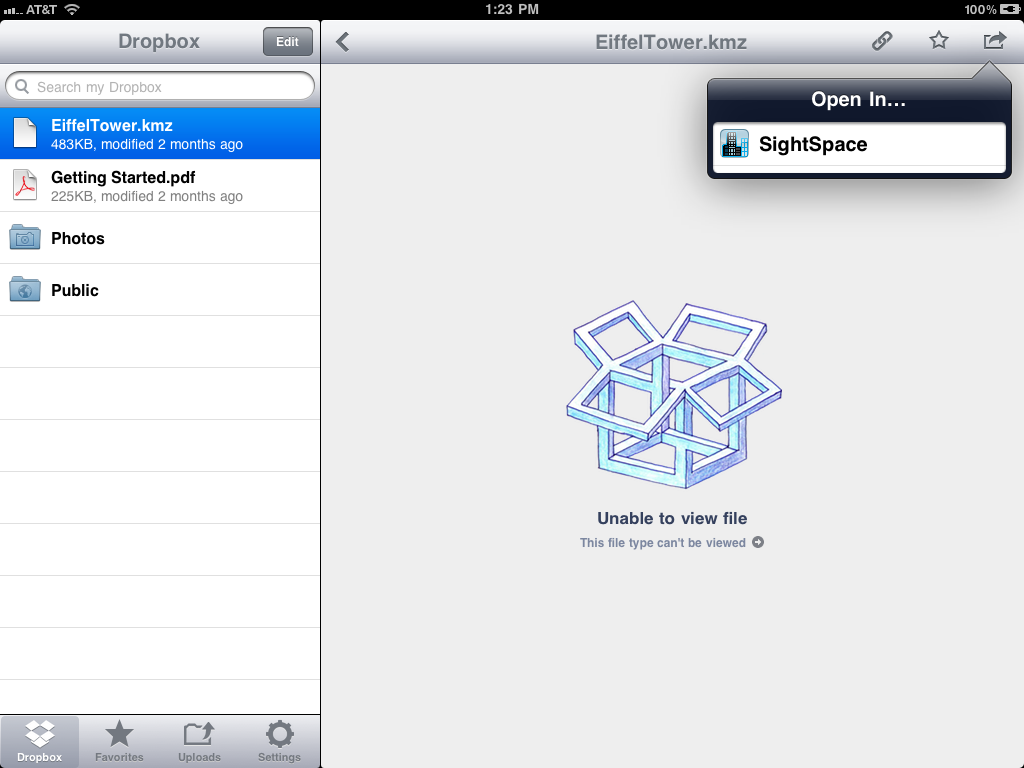

  Select the .kmz file in Dropbox, select the Action button in the upper right, and select Open in SightSpace.



  On the iPhone, the Action button in the lower right. Tap the action button and select SightSpace.

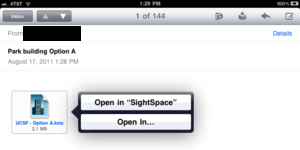

• Opening from Email

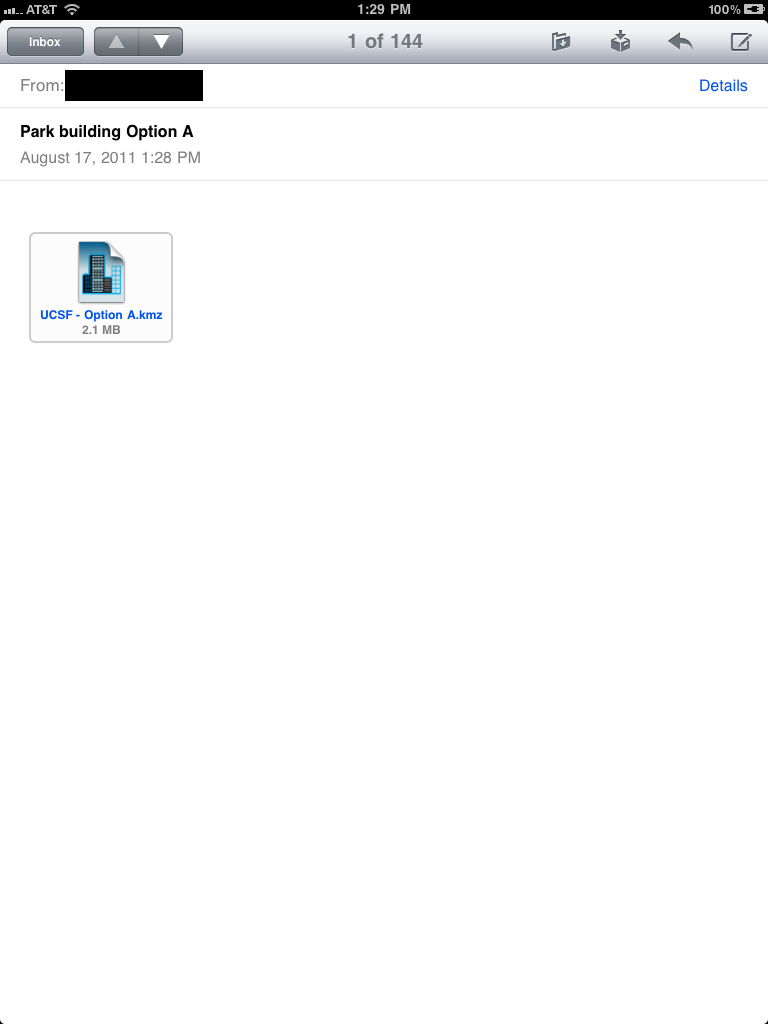

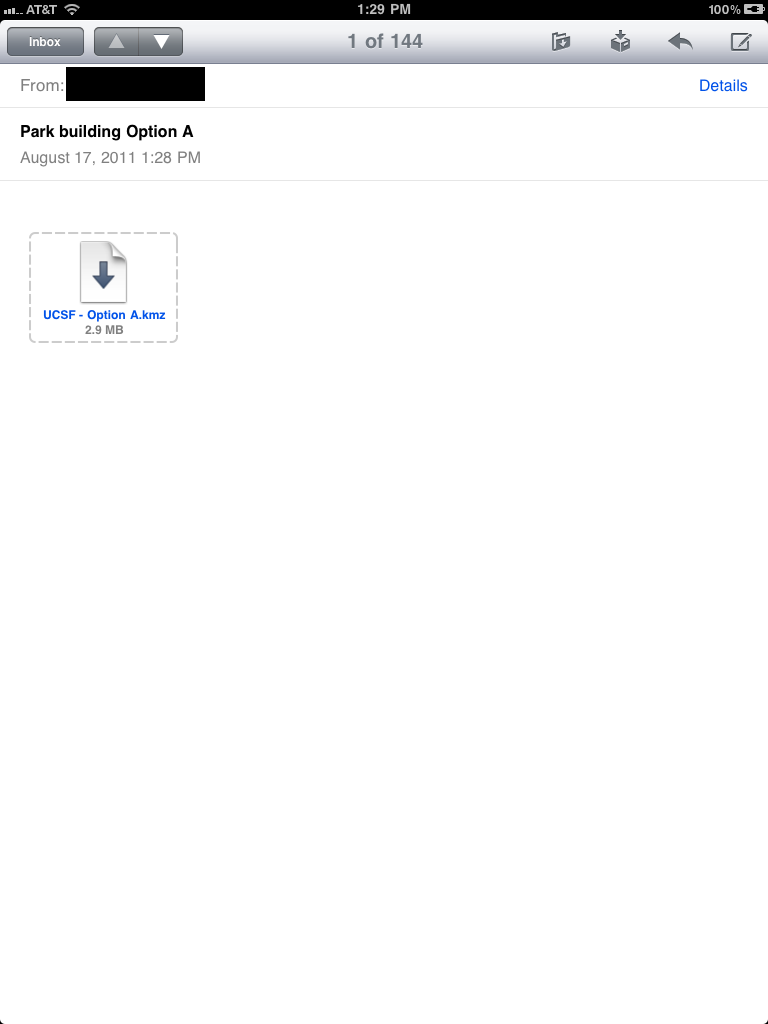

  The .kmz file email attachment will initially show as a Down arrow. Tap the arrow to download the .kmz file to your device.



  When the download completes, the file will show with the SightSpace icon.

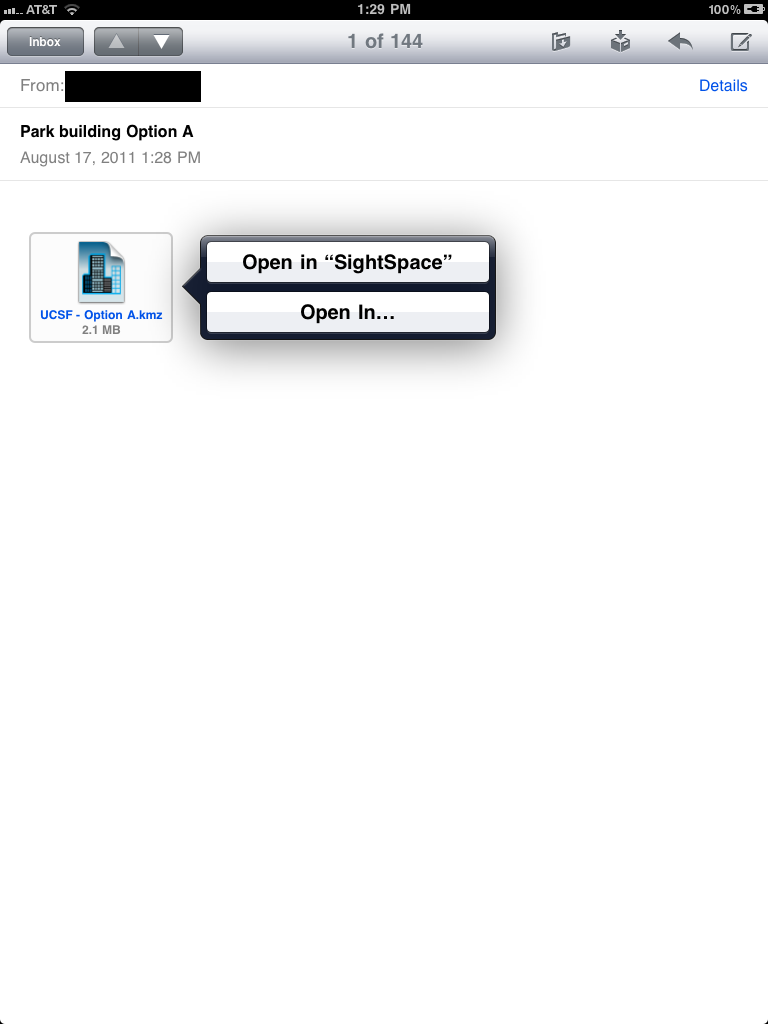

  Tap the icon and select Open in SightSpace



• Opening from the Trimble 3D Warehouse

  When browsing the 3D Warehouse, look for 'View in SightSpace 3D' links associated with the model.

  To search for models near your current location, tap the action icon in the upper right of the Trimble 3D Warehouse. Select a search radius. You can also search for a model near the model currently loaded.

  Note: Not all models are available for viewing in SightSpace 3D and those models will not have a 'View in SightSpace 3D' link

• Controls: Load

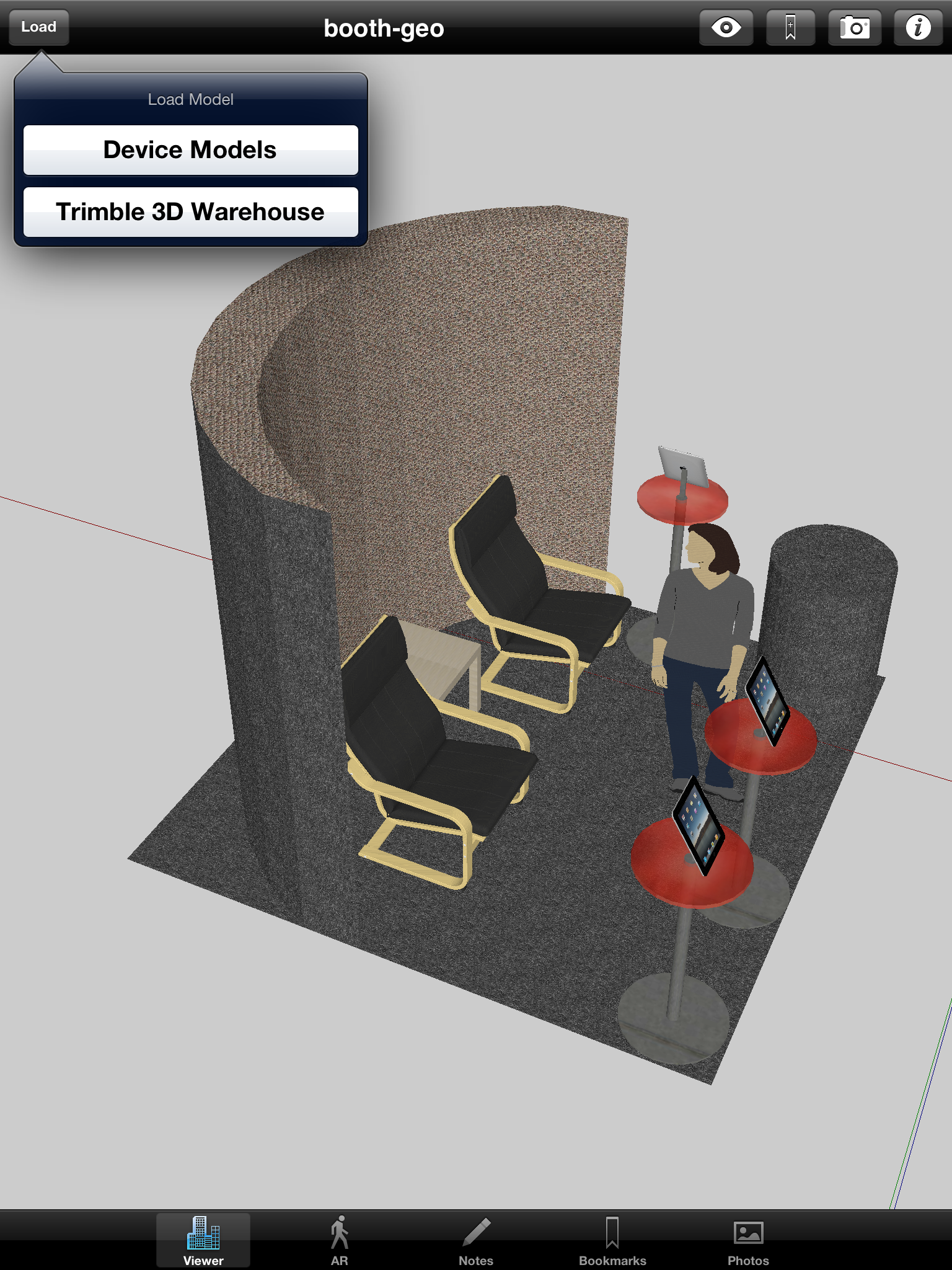

  • SightSpace 3D reads .KMZ files. Select "Device Models" from the "Load" button to load a SketchUp model already on the Device.
  • Load a model onto the device by going to iTunes^® and clicking on the device (e.g. iPad^®, iPhone^®) icon. In the device menu, go to the Apps tab and scroll down until you see "Filesharing". Click on the SightSpace icon and then click Add to select the files.

• Controls: Load from Trimble 3D Warehouse

  • Select "Trimble 3D Warehouse" to open the Trimble 3D Warehouse and download a model (look for "View in SightSpace 3D" link). Requires internet connection.
  • Open .KMZ files from Dropbox by selecting the .kmz file in Dropbox, clicking the Action button in the upper right, and selecting Open in SightSpace.
  • Open .KMZ email attachments by tapping the arrow to download the .kmz file to your device. When the download completes, the file will display the SightSpace icon. Tap the icon and select Open in SightSpace

• Load: Models on the Device

  Select "Device Models" from the "Load" button to show all models currently on the device. Tap on a model to load into SightSpace 3D

  To delete a model, click the Trashcan, and click the red X icon. Confirm delete.

• View Mode

  • Orbit – use a single finger to rotate around the model
  • Look Around – use a single finger to look up, down, left and right
  • Background – change the model background image to a Photo on the device, a live Camera feed, or set to No Background. Model can be resized and located over the selected background.
  • Stereo 3D (Red/Cyan) - View your model in 3D with a pair of red-cyan 3D glasses
  • Stereo 3D Exaggeration slider: choose how much to exaggerate your 3D viewing experience when viewed with red-cyan glasses. Slide towards Maximum to increase model "pop" from the screen.

• Bookmarks

  Select + Bookmark icon on toolbar to add a bookmark of the current model view. Select Bookmarks on the Tab bar to view all current model bookmarks. To delete bookmark, tap on trashcan delete button. Bookmarks are associated with the active model.

• Camera

  The camera button takes a photo of what is currently displayed on the screen. These images are stored in the Photos Tab bar item and are associated with the model photographed. An image can be shared by selecting Photos on the Tab bar, choosing the desired photo, and selecting Email Photo under the Action button. Photos may also be Printed or saved to the Photo Album, also under the Action button.

• AR button

  The AR button turns on Augmented Reality mode and is only available on iPad 2 and later, and iPhone 4 and later. The digital SketchUp model is positioned in physical space and viewed through the device camera.

  If you are not located near the model, you are prompted for a location by receiving a top-down view of the active model and tapping a location (pinch-zoom and single-finger pan to move to desired locale).

  Touch controls in AR mode:

  • Single finger pan to move the model up, down, left, right
  • Pinch-zoom to move forward and back
  • Double tap to choose a new location
    • Note: Double tapping for a location will turn off GPS updates. These controls can be used with both a geolocated and non geolocated model.

  Note that the model is displayed at real-world scale because it is geolocated and the device has location information. If geolocation is not available, the model is still displayed.

  The action menu in the upper left provides additional options:

  • Disable GPS Updates - The iOS device continuosly updates its location information. At times, this can result in a model-shift or drifting. If you like the location of your model and dislike the location updates provided, you can turn off the GPS with this option.
  • Stereo 3D (Red/Cyan) - Turn on Red/Cyan Stereoscopic 3D, viewable with a pair of red/cyan 3D glasses. 3D stereoscopic model is superimposed over the live camera feed.
  • Stereo 3D Exaggeration slider: choose how much to exaggerate your 3D viewing experience when viewed with red-cyan glasses. Slide towards Maximum to increase model "pop" from the screen.

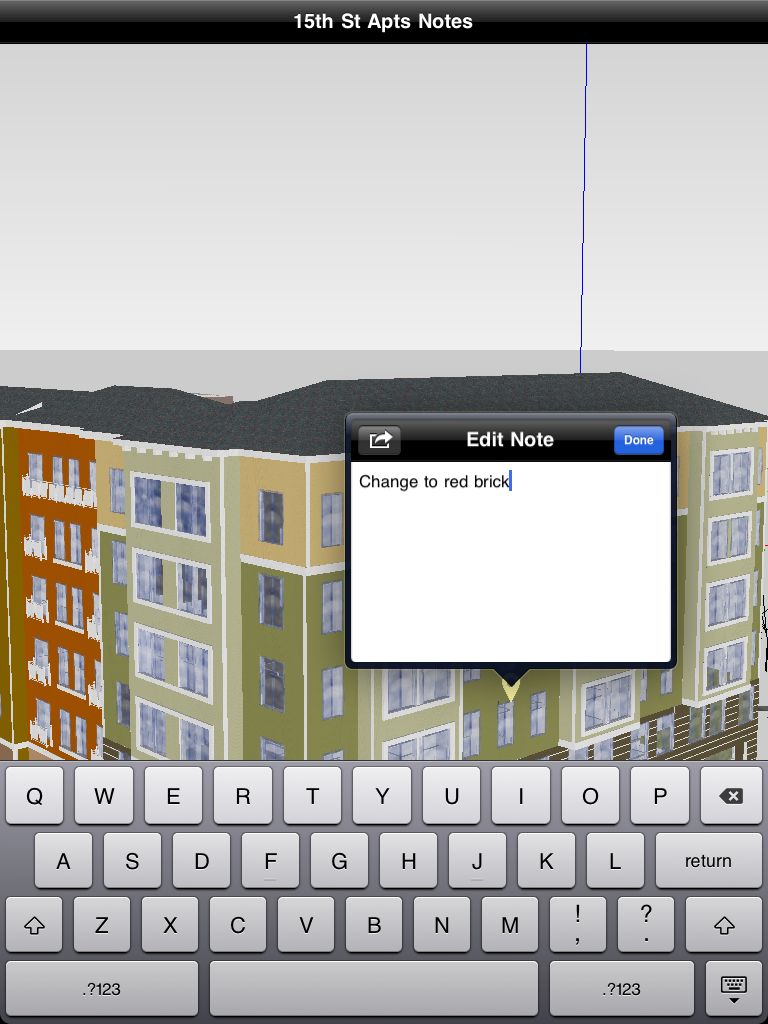

• Notes

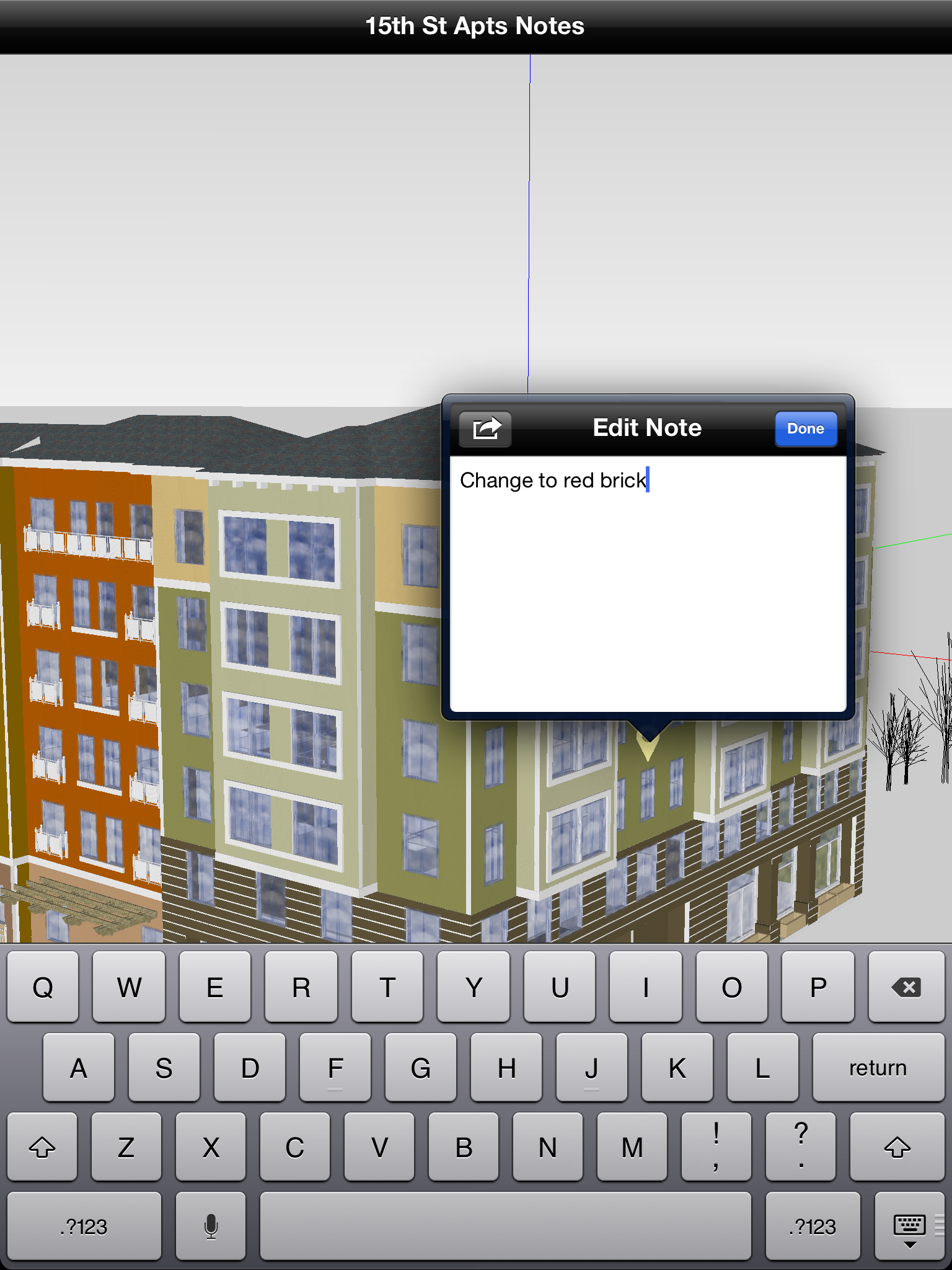

  To place a note on the current model, tap location and type. Previously placed notes appear while in Notes view with a yellow bubble.

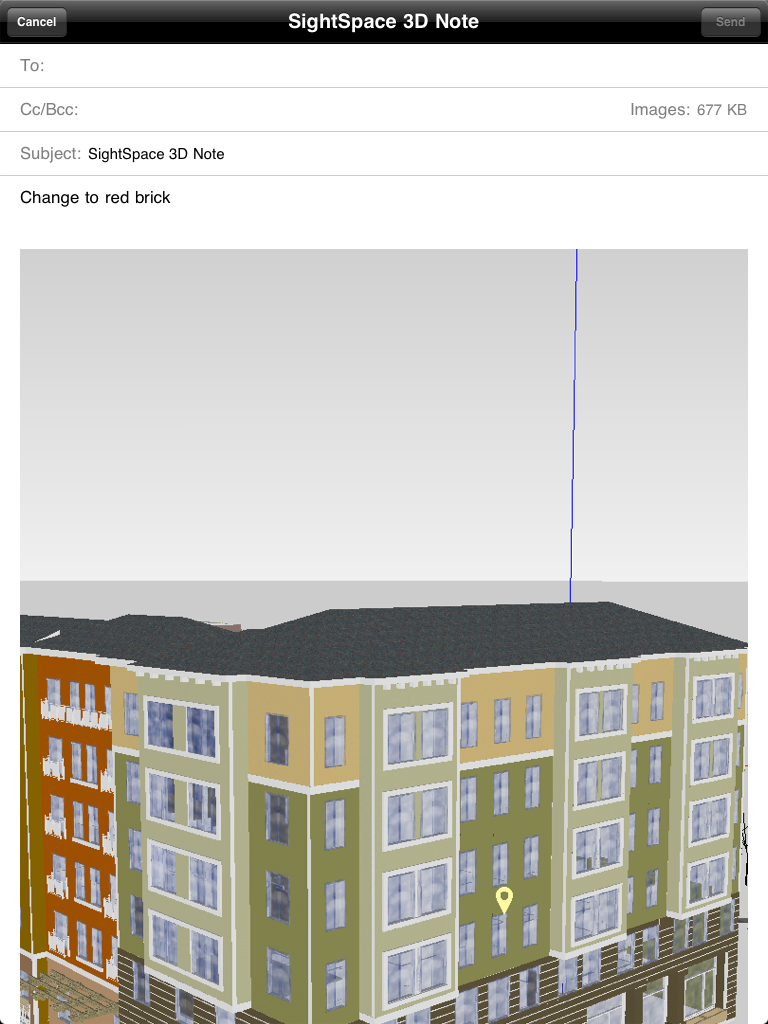

  Share notes by tapping on the note and selecting Email note from the Action button. Notes are emailed with a picture of the note location on the model.

  Delete notes by tapping on the note and selecting Delete note from the Action button.

• Photos

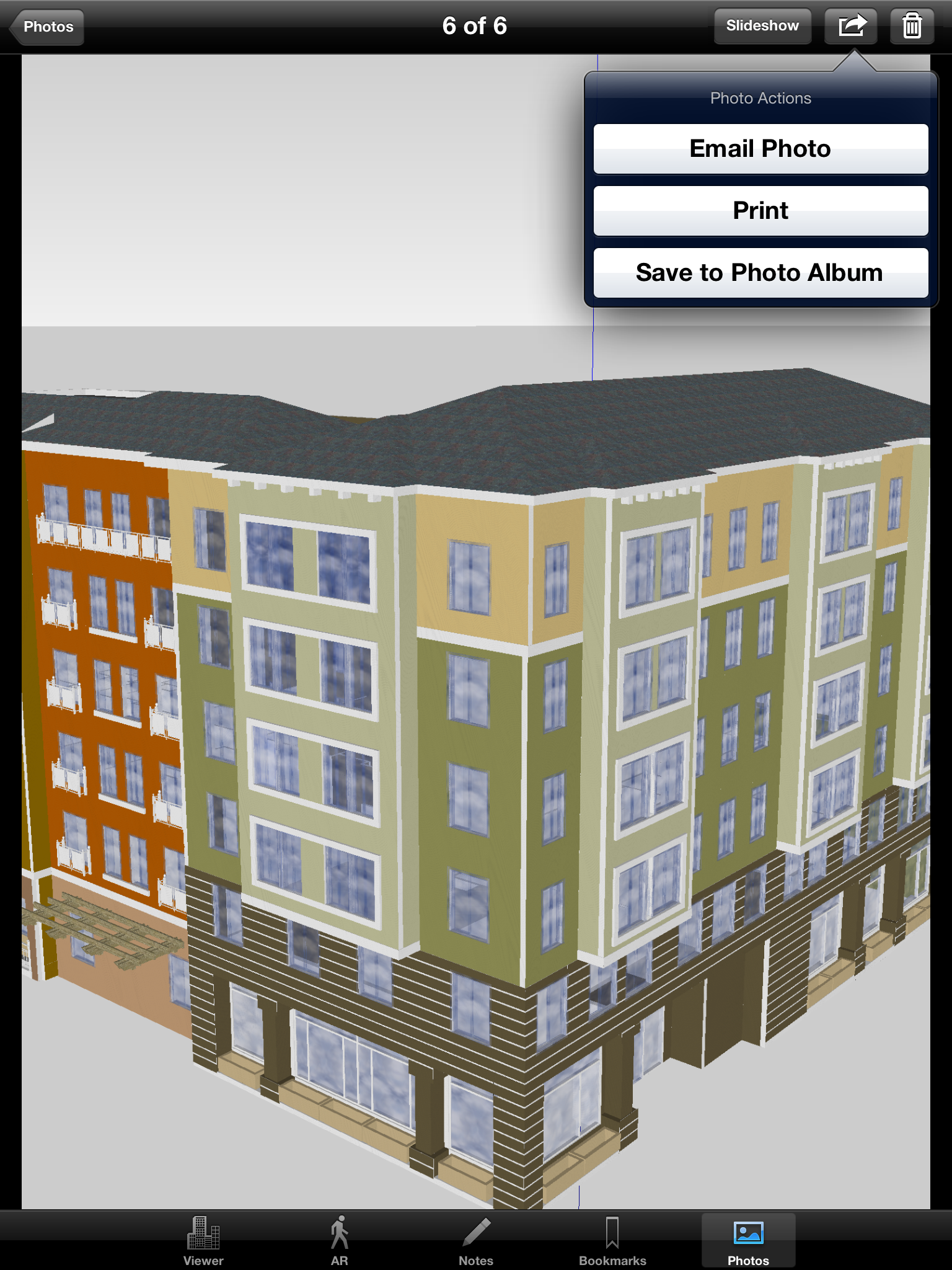

  The Photos Tab bar item displays images taken with the Camera button. Photo Actions include the option to Email Photo by selecting the desired image, selecting Email Photo, and emailing the recipient. Print and save to Photo Album are also available. Select Slideshow to enable a slideshow of all pictures associated with the model. Single finger swipe to move through pictures. Click on the Trashcan to delete the selected photo.

• Memory Messages

  SightSpace 3D utilizes a custom 3D engine to display the largest, most complex models possible and takes full advantage of the memory on iOS devices. This memory is limited and it is not possible to load every model. In these cases, you will receive a memory message (to prevent a crash). This section will suggest actions you can take to load the largest, most complex models possible.

  If you receive a recurrent memory message or an error, try the following:

  • Close all other running apps (double tap the Home key, hold App icon until minus appears, and tap the minus to close)
  • Optionally, after closing other apps, reboot your device - this gives the maximum amount of RAM for SightSpace 3D to use (press and hold the screen lock button for 5 seconds and follow the instructions to power off the device)
  • Lastly, if the above is insufficient, reduce model complexity

  Model complexity does not equal simple file size. Factors include geometry, materials, and components.

  iOS devices contain two types of memory: Storage Space and RAM. Storage space memory is the GBs that your device has such as 16GB, 32GB, etc. RAM memory is used by all the running apps on the device and is limited. Memory messages you receive from SightSpace 3D will be a result of running out of RAM.

  Deleting music, photos, videos, apps, etc from your device will NOT fix the memory message.

• Settings

  Configure various model loading options for tuning performance and memory usage under Settings -> SightSpace. These options include the following:

  • Turning lines in models on/off: enables loading of larger models
  • Choose to display hidden geometry: this option is best used in conjunction with Google Earth .kmz files
  • Performance-Quality slider: choose between better performance and better model quality
  • Memory messages on/off: when your device is about to run out of available memory, a memory message will be displayed and SightSpace 3D will close to keep from crashing. Turning off Memory Messages will allow you to load the largest models possible but may also cause app crashes because this protection is now turned off.

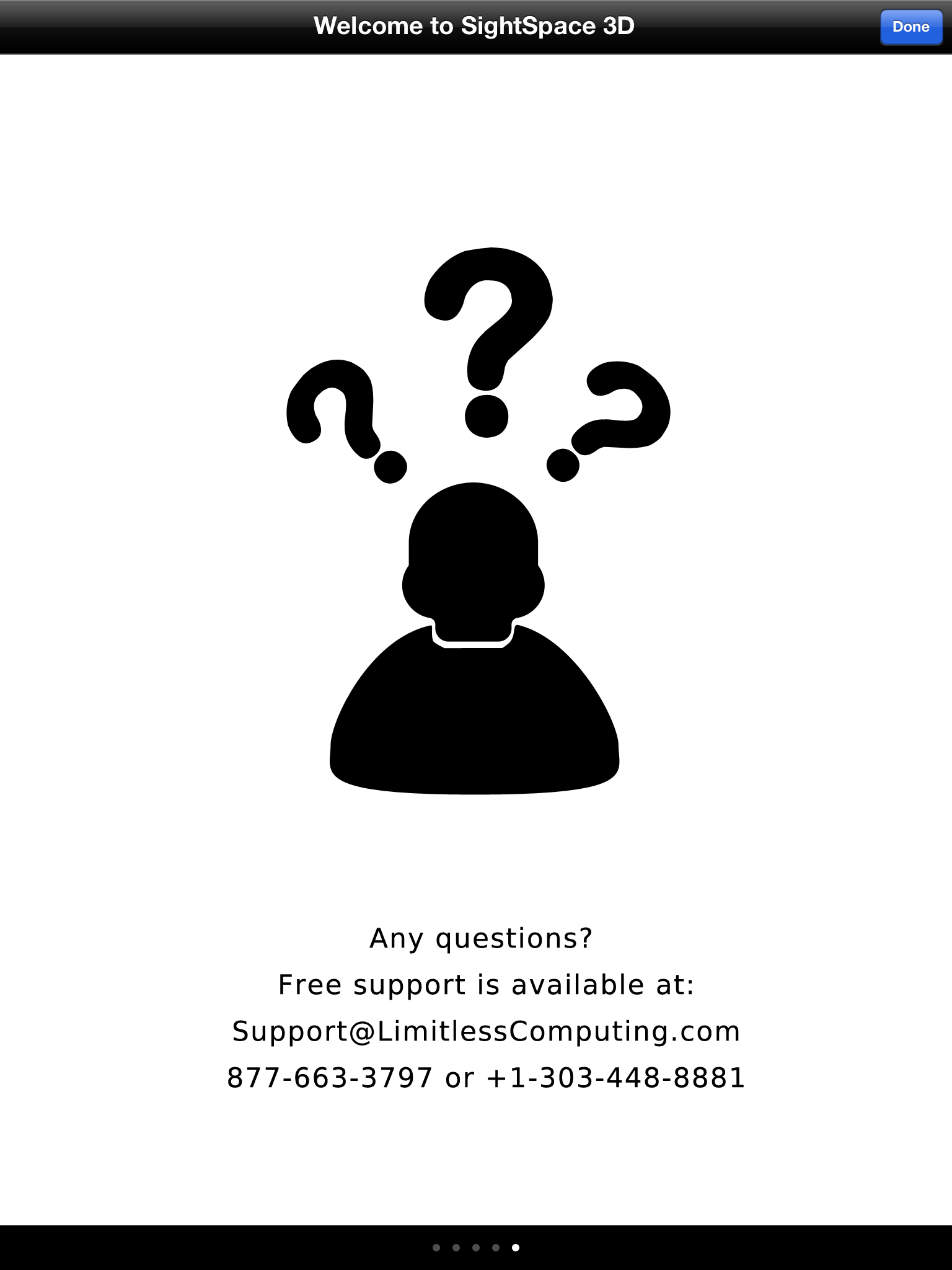

Further questions? Call us at 877.663.3797 or email.

Tutorial Video

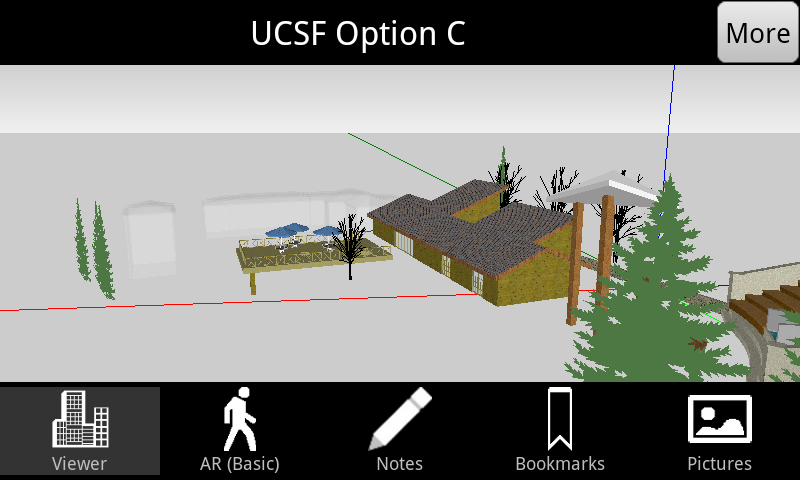

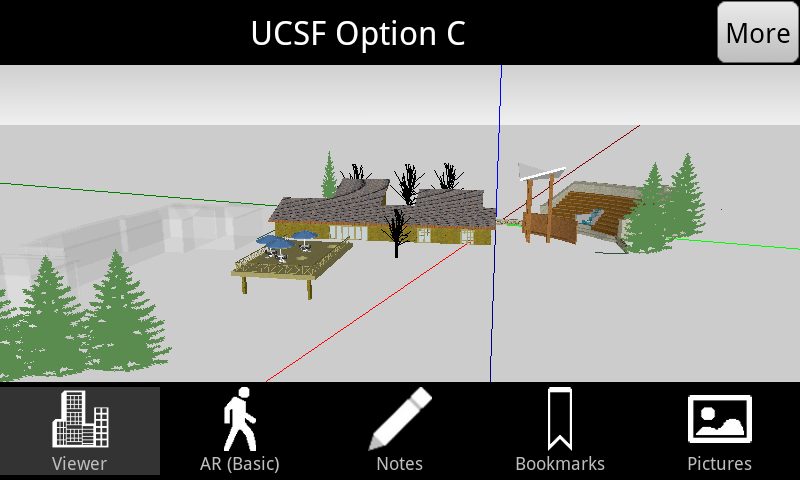

• Viewer

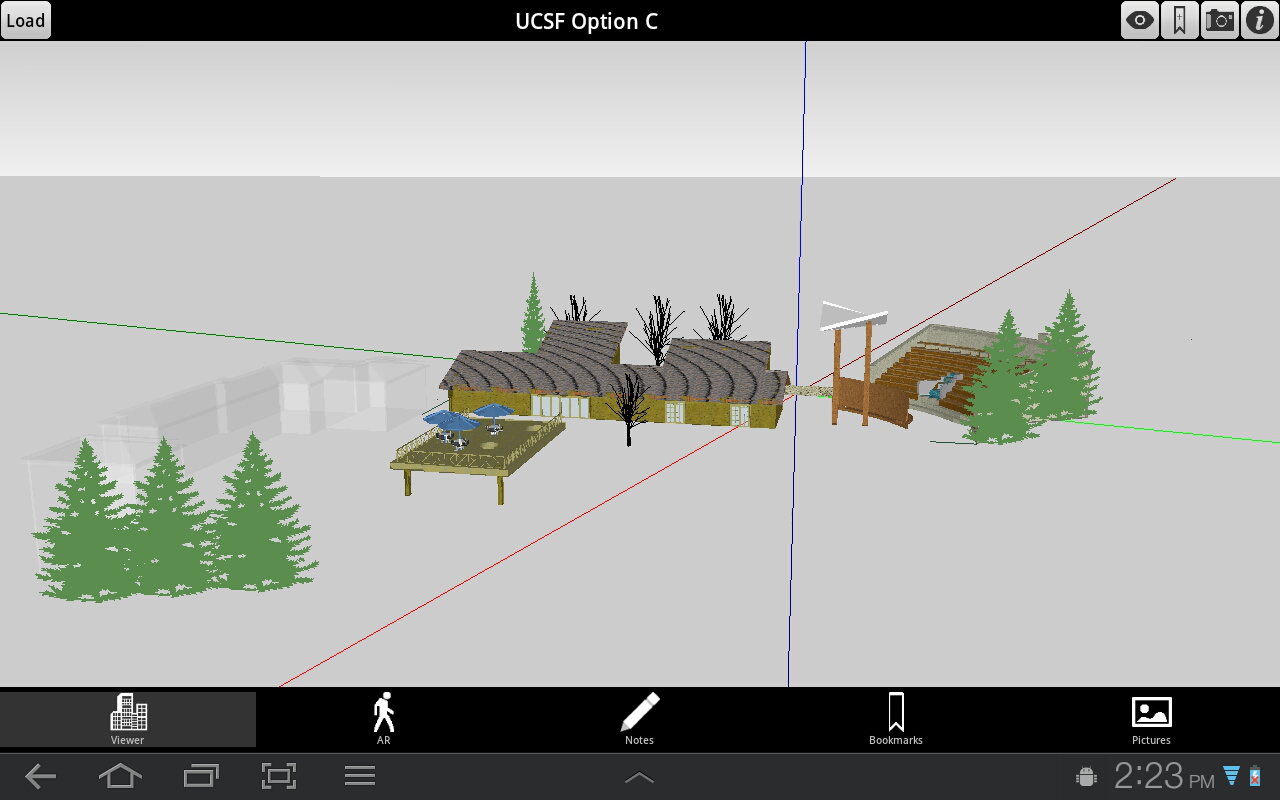

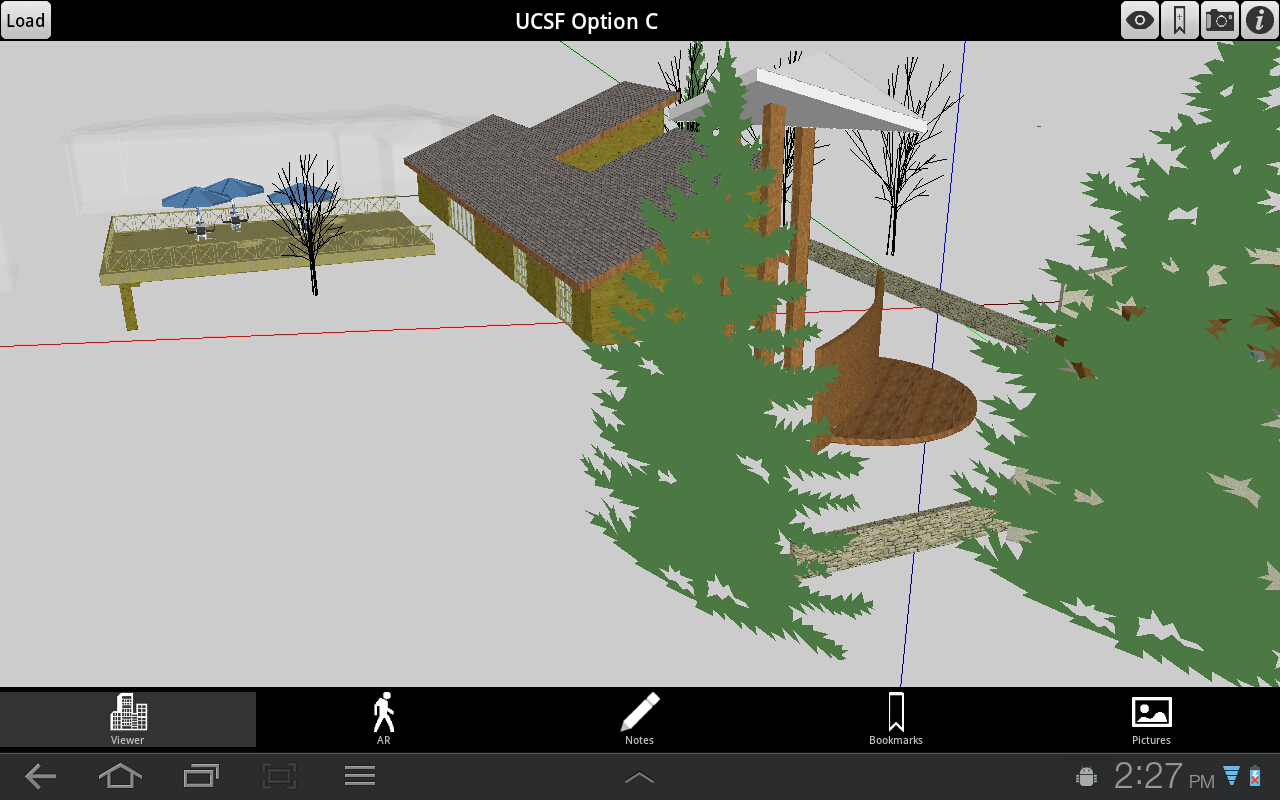

  The default mode is a SketchUp (or .KMZ) model viewer. Incorporating the intuitive controls of the device, utilize a single finger to orbit around the model, a double finger swipe to pan, and two fingers to pinch zoom in and out. A double tap will reset the view. Additional view controls are available under the View Mode menu marked with an eyeball

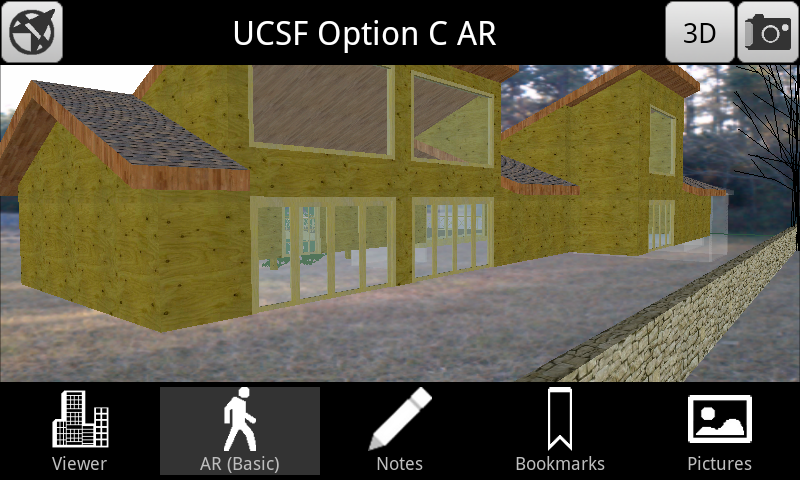

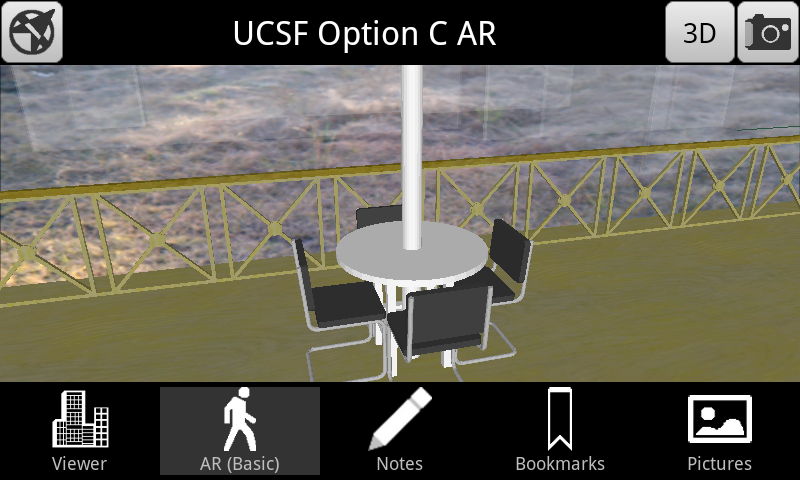

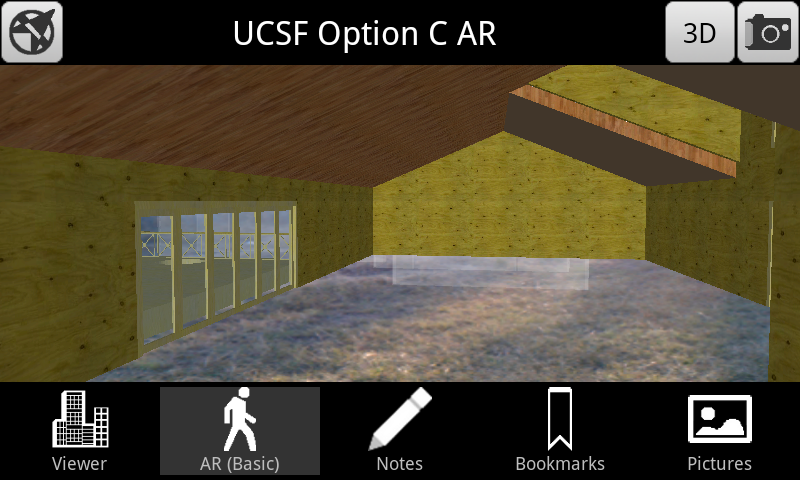

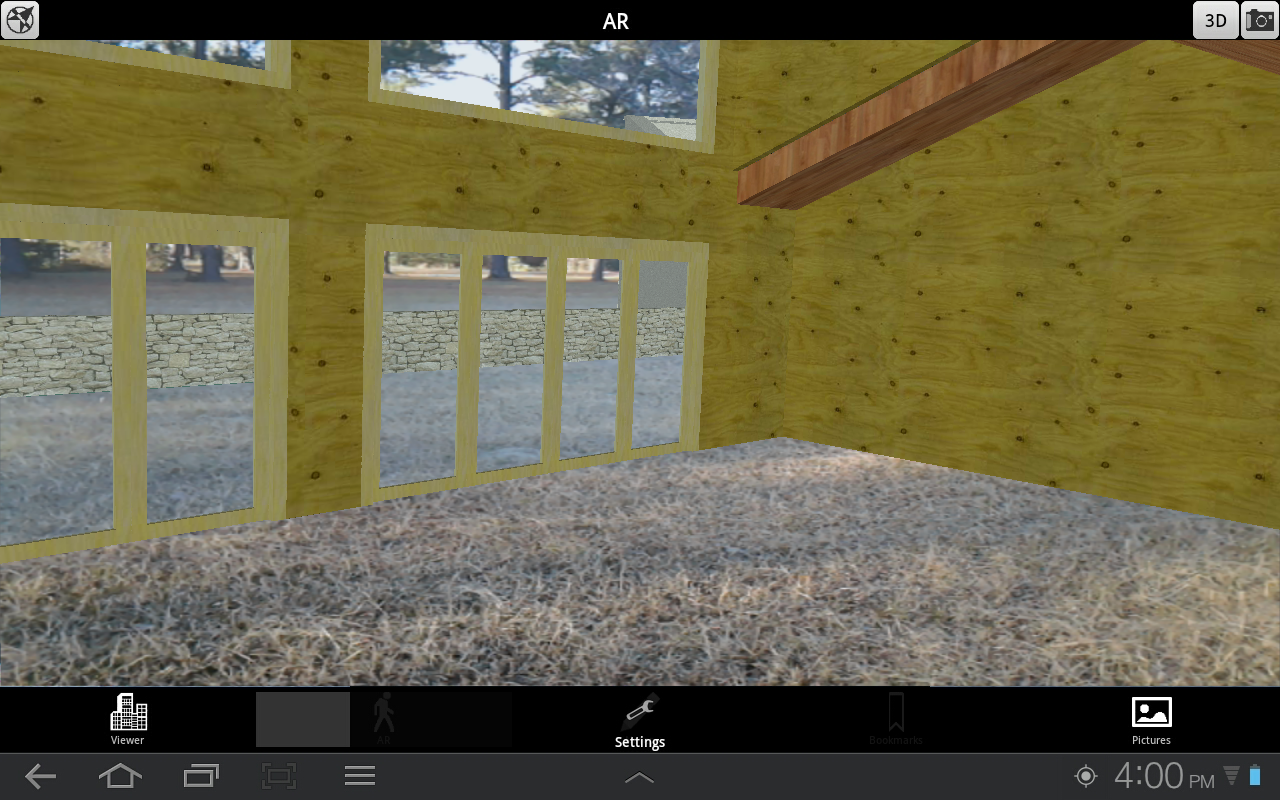

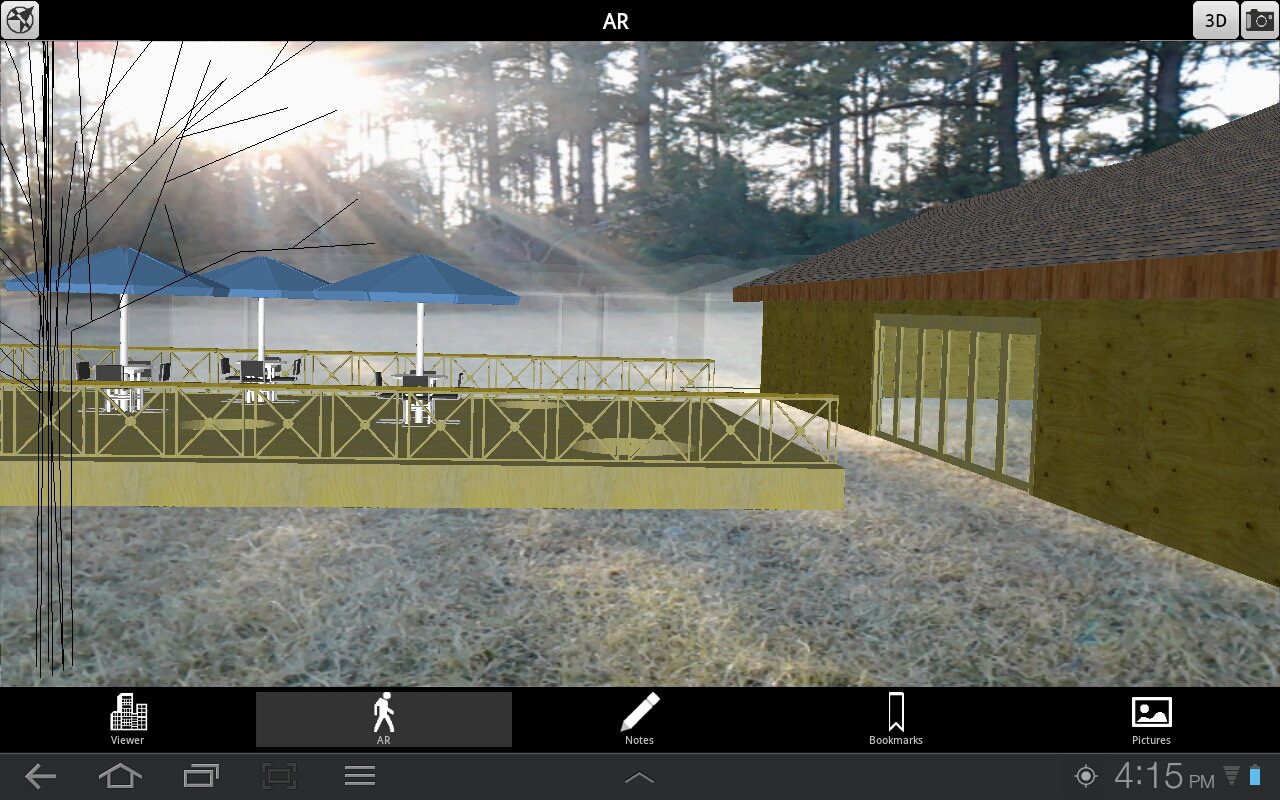

• Augmented Reality

  Augmented Reality (AR) superimposes a virtual model onto the real world via the device camera and is only available on devices with the necessary hardware (phones and tablets with either 1) compass/accelerometer + back-facing camera + geo-location or 2) compass/accelerometer/gyroscope + back-facing camera + geo-location). (*Note: The requirements for AR mean it is not available on Kindle or the Nexus 7).

  AR works because both the device and model are geolocated. To ensure on-site accuracy, check the following:

  • The .KMZ file must be geolocated

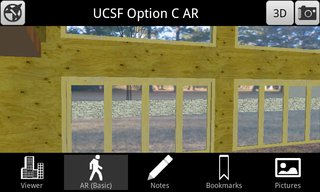

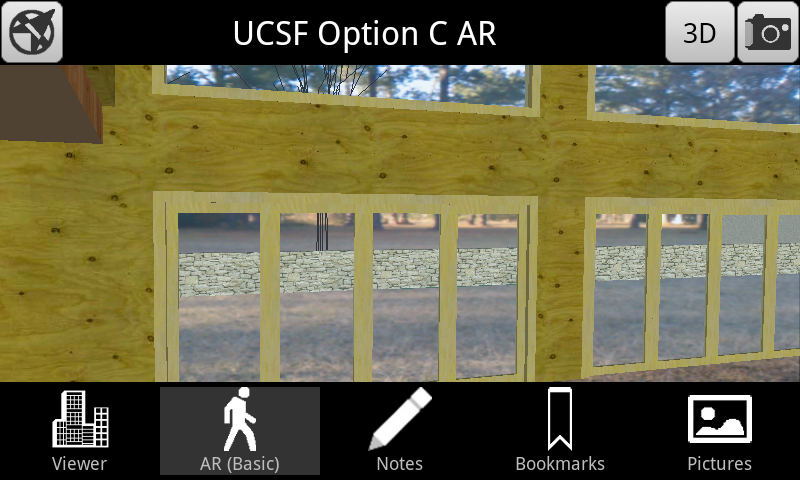

  • AR Basic: If your device says "AR (Basic)" in the tab bar, you may experience a slight lag in model updating when moving the device in AR mode. Keep your movements slow and smooth.
  • Enable GPS when prompted. SightSpace will choose the most accurate geo-location method for your device to ensure accuracy.
  • If there is no cellular or wifi connection, model can be manually located by tapping, dragging, and further adjusting

• Augmented Reality Tips

  • If the model appears to be in the wrong location in Augmented Reality mode, use the Maps application to ensure your device has you positioned correctly.
  • Alternatively, move the device away from any local magentic sources, press the Home key, and tap on the SightSpace icon. This will re-initialize the Augmented Reality engine.
  • Lastly, recalibrate SightSpace by selecting Menu -> Settings -> Calibrate augmented reality. The device will undergo a 7 second calibration. Device calibration can be reset by selecting Menu -> Settings -> Calibrate augmented reality -> Reset Calibration pressing the Home key, and tapping on the SightSpace icon. This will re-initialize the augmented reality engine with an updated compass heading.

• Opening from Dropbox

  Select the .KMZ file in Dropbox. The file will automatically open in SightSpace.

• Opening from Email

  Select the "Open" or "Preview" button in your email message (button text will vary depending on which email client you are using.) The .KMZ file will automatically open in SightSpace. If you select "Download", the .KMZ file will save to your device. Open SightSpace, tap Load -> Device Models -> All to automatically search your device for all .KMZ models. Your file will appear in the list. Tap to open.

• Opening from the Trimble 3D Warehouse

  When browsing the 3D Warehouse, look for 'View in SightSpace 3D' links associated with the model.

  To search for models near your current location, tap the action icon in the upper right of the Trimble 3D Warehouse. Select a search radius. You can also search for a model near the model currently loaded.

  Note: Not all models are available for viewing in SightSpace 3D and those models will not have a 'View in SightSpace 3D' link

• Controls: Load

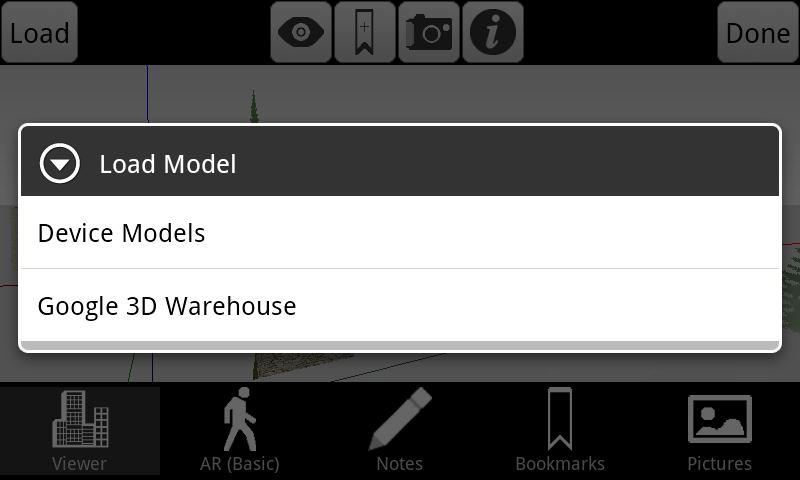

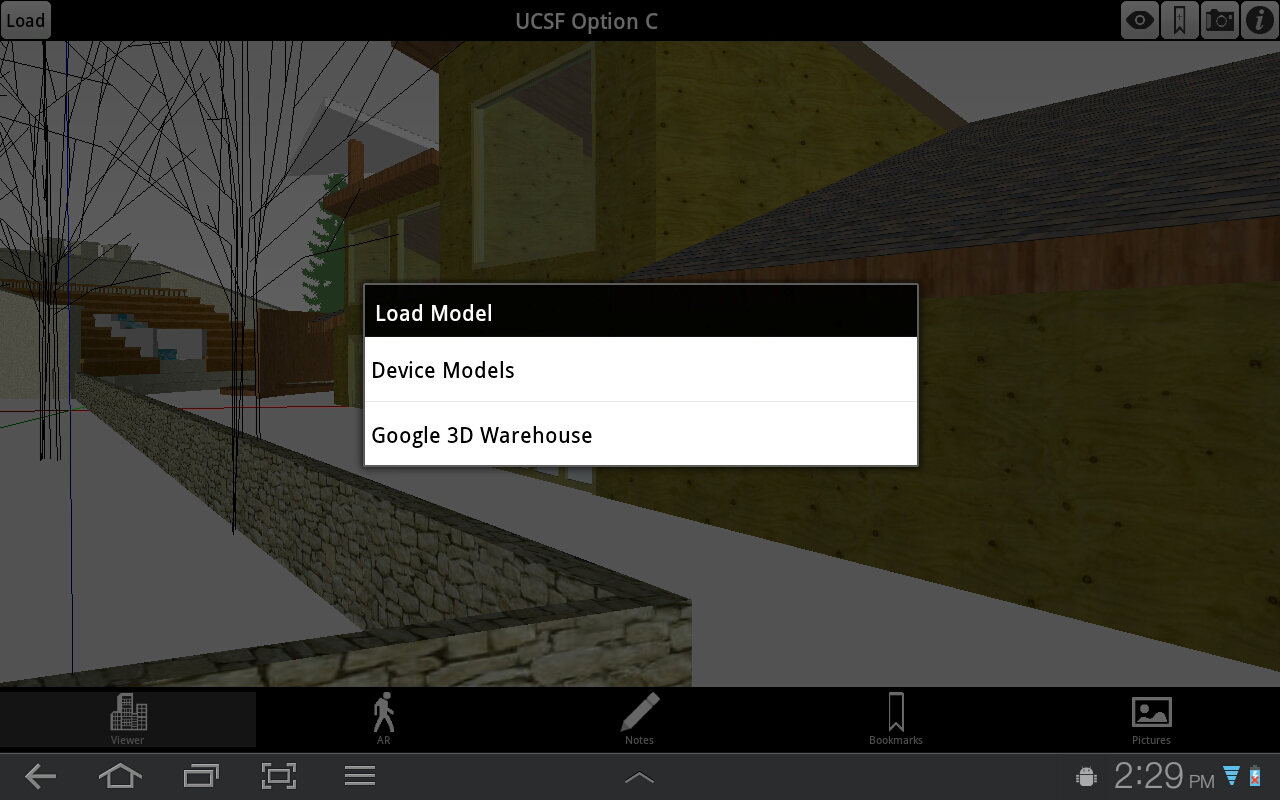

  • SightSpace 3D reads .KMZ files. Select "Device Models" from the "Load" button to load a SketchUp model already on your Android device.
  • Load a model onto the device via USB connected to your computer.
  • Open .KMZ files from Dropbox by selecting the .KMZ file in Dropbox. The file will open in SightSpace.
  • Open .KMZ email attachments by tapping either the "Open" or "Preview" button. The file will open in SightSpace.

• Controls: Load from Trimble 3D Warehouse

  • Select "Trimble 3D Warehouse" to open the Trimble 3D Warehouse and download a model (look for "View in SightSpace 3D" link). Requires internet connection.

• Load: Models on the Device

  Select "Device Models" from the "Load" button to show all models currently on the device. Tap on a model to load into SightSpace 3D. Tap "Recent" to display your recently opened models. "All" will search your devices for all .KMZ files.

  To delete a model, tap the Trashcan, and tap the Trashcan icon next to the file you want to delete. Confirm delete.

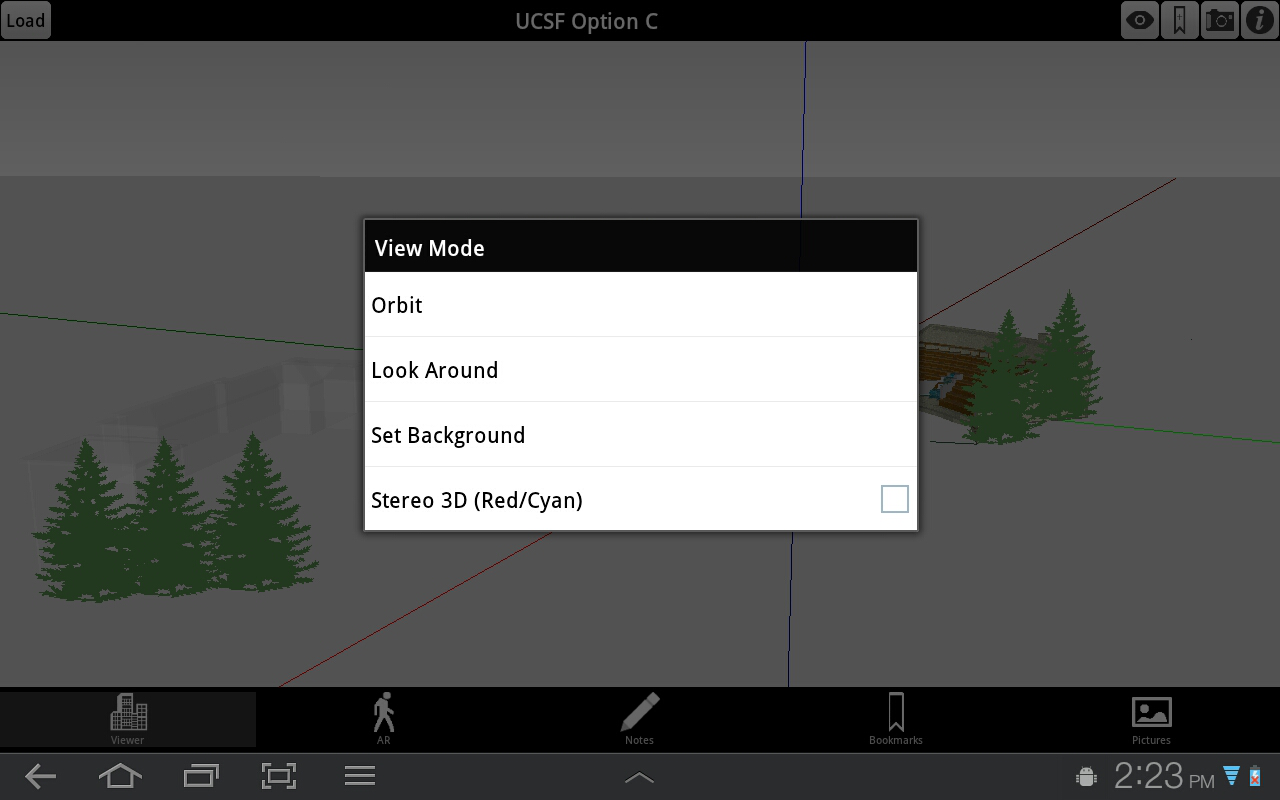

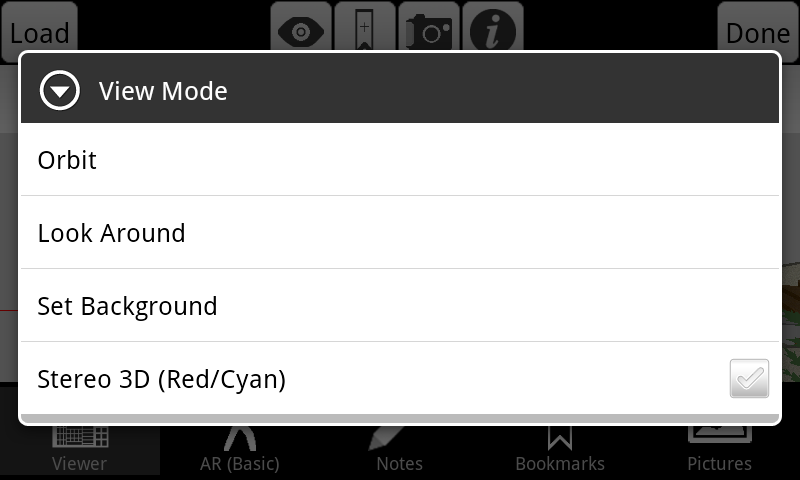

• View Mode

  • Orbit – use a single finger to rotate around the model
  • Look Around – use a single finger to look up, down, left and right
  • Background – change the model background image to a Photo on the device, a live Camera feed (on devices with a camera), or set to No Background. Model can be resized and located over the selected background.
  • Stereo 3D (Red/Cyan) - View your model in 3D with a pair of red-cyan 3D glasses
  • Stereo 3D Exaggeration slider: choose how much to exaggerate your 3D viewing experience when viewed with red-cyan glasses. Slide towards Maximum to increase model "pop" from the screen.

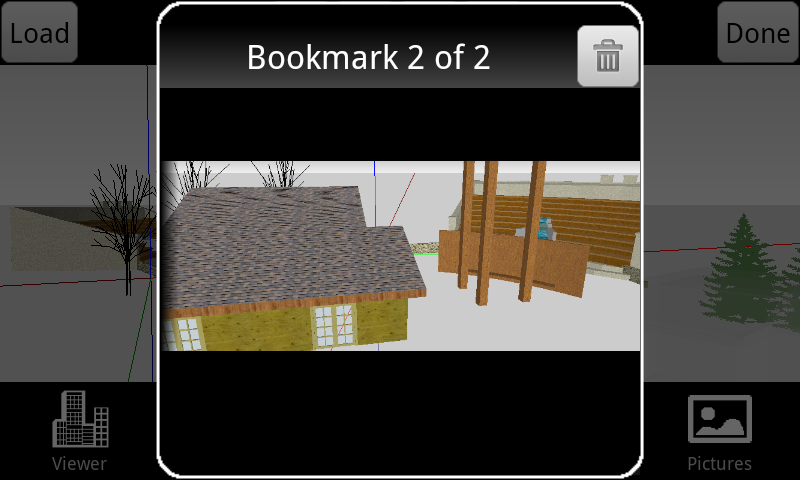

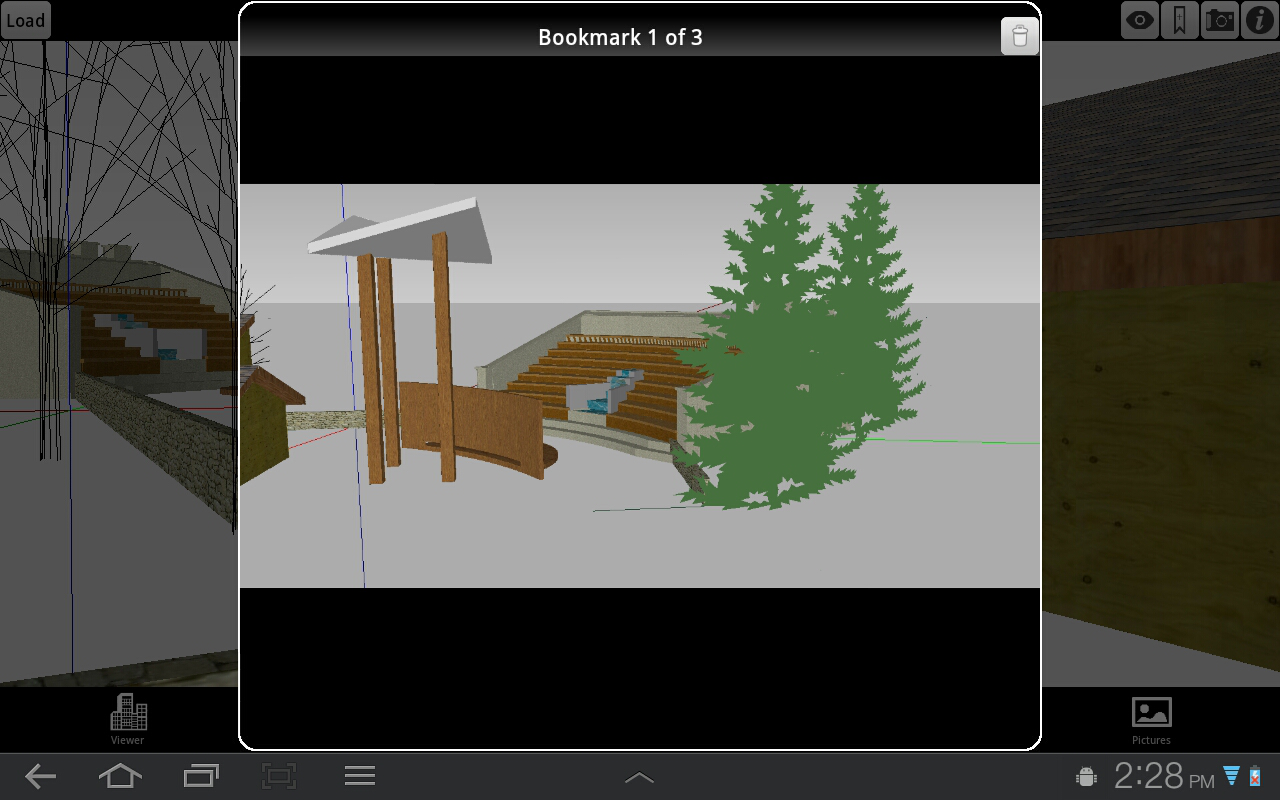

• Bookmarks

  Select + Bookmark icon on toolbar to add a bookmark of the current model view. Select Bookmarks on the Tab bar to view all current model bookmarks. To delete bookmark, tap on trashcan delete button. Bookmarks are associated with the active model.

• Camera

  The camera button takes a photo of what is currently displayed on the screen. These images are stored in the Photos Tab bar item and are associated with the model photographed. An image can be shared by selecting Photos on the Tab bar, choosing the desired photo, and selecting Email Photo under the Action button. Photos may also be Printed or saved to the Photo Album, also under the Action button.

• AR button (not available on Kindle or Nexus 7)

  The AR button turns on Augmented Reality mode and is only available on supported devices (phones and tablets with either 1)compass/accelerometer + camera or 2) compass/accelerometer/gyroscope + camera). The digital SketchUp, Google Earth, or Trimble 3D Warehouse model is positioned in physical space and viewed through the device camera.

  If you are not located near the model, you are prompted for a location by receiving a top-down view of the active model and tapping a location (pinch-zoom and single-finger pan to move to desired locale).

  Touch controls in AR mode:

  • Single finger pan to move the model up, down, left, right
  • Pinch-zoom to move forward and back
  • Double tap to choose a new location
    • Note: Double tapping for a location will turn off GPS updates. These controls can be used with both a geolocated and non geolocated model.

  Turn off GPS: The device continuosly updates its location information. At times, this can result in a model-shift. If you like the location of your model and dislike the location updates provided, you can turn off the GPS with this button.

  Note that the model is displayed at real-world scale because it is geolocated and the device has location information. If geolocation is not available, the model is still displayed.

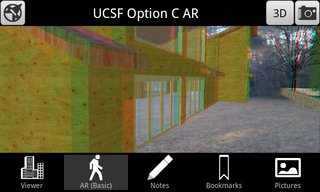

  3D: Turn on Red/Cyan Stereoscopic 3D, viewable with a pair of red/cyan 3D glasses. 3D stereoscopic model is superimposed over the live camera feed.

  Stereo 3D Exaggeration slider: choose how much to exaggerate your 3D viewing experience when viewed with red-cyan glasses. Slide towards Maximum to increase model "pop" from the screen.

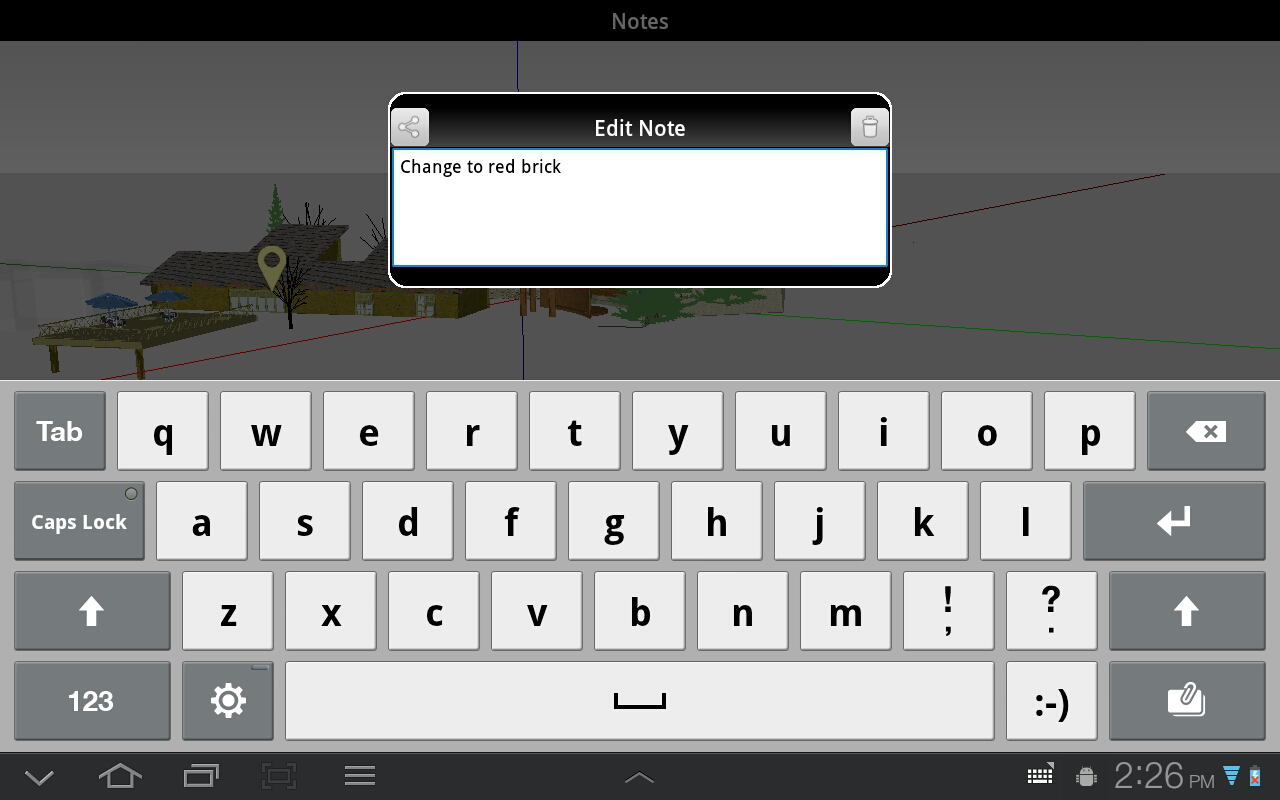

• Notes

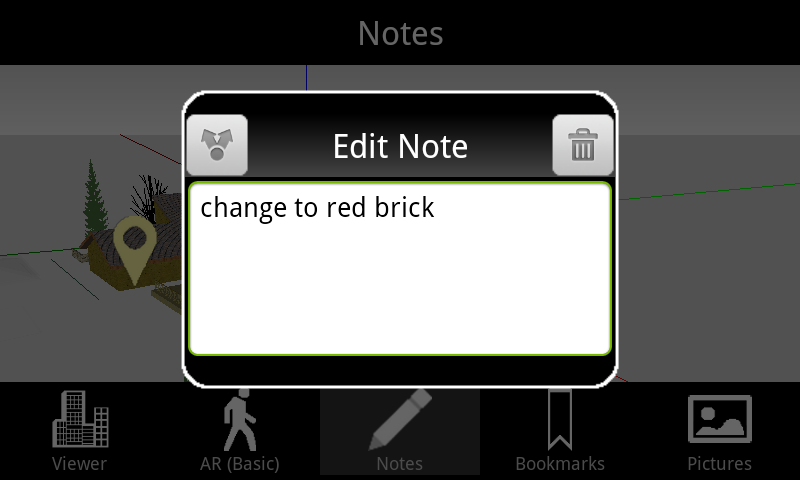

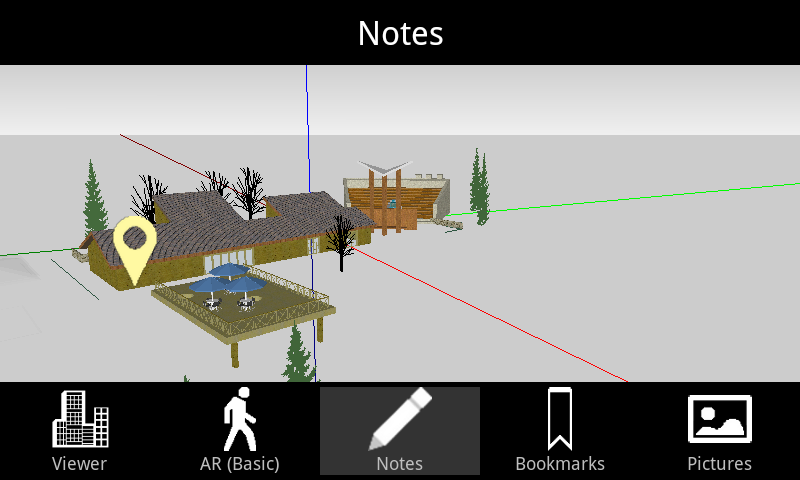

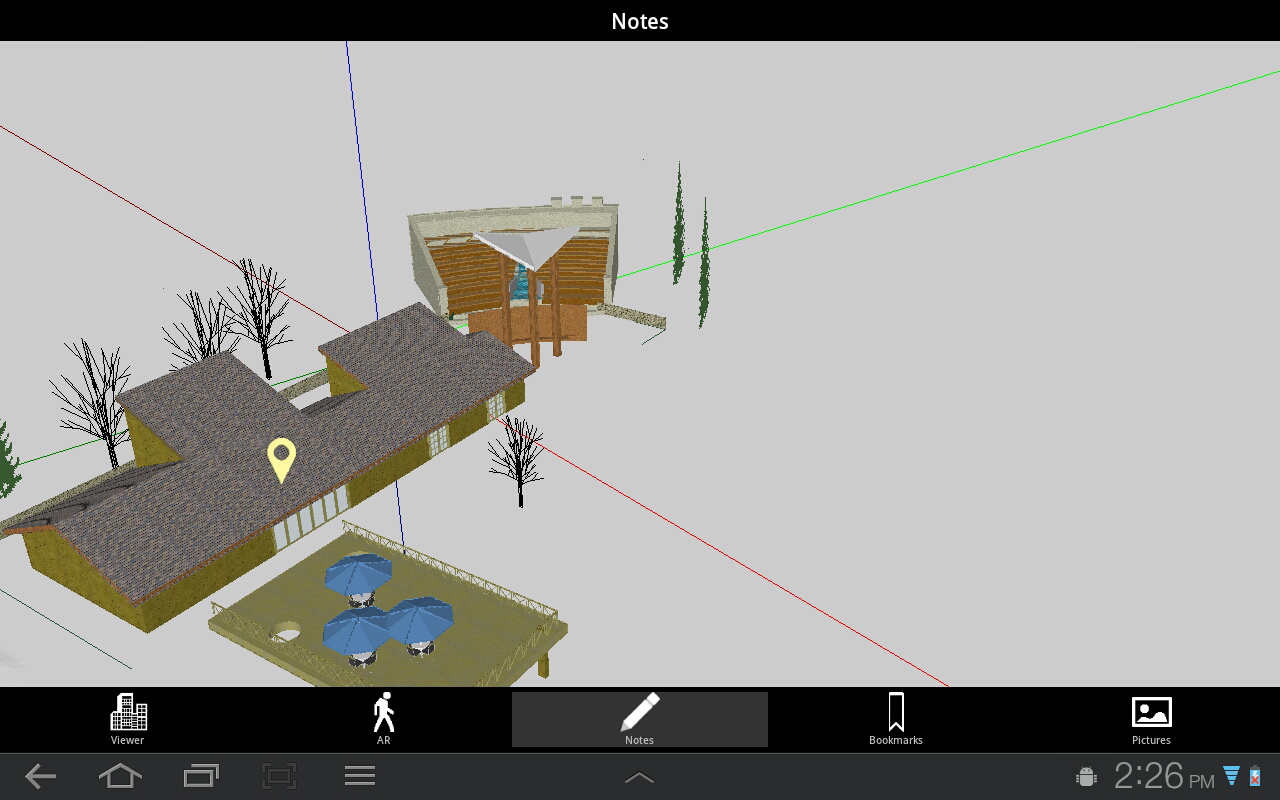

  To place a note on the current model, tap location and type. Previously placed notes appear while in Notes view with a yellow bubble.

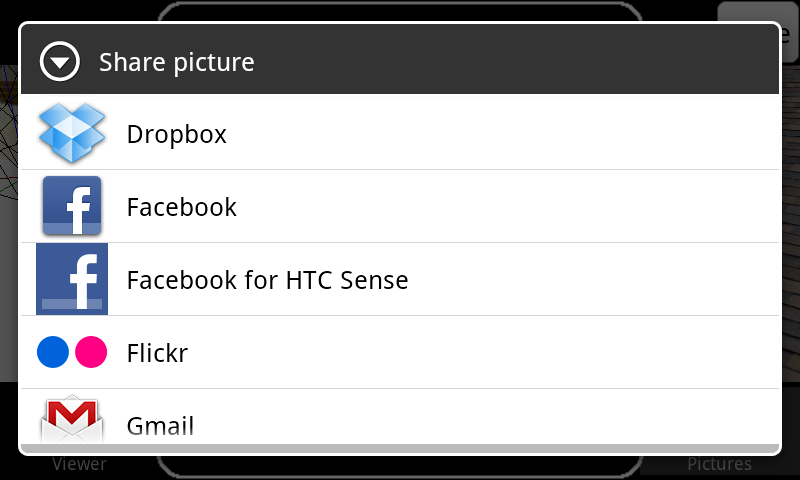

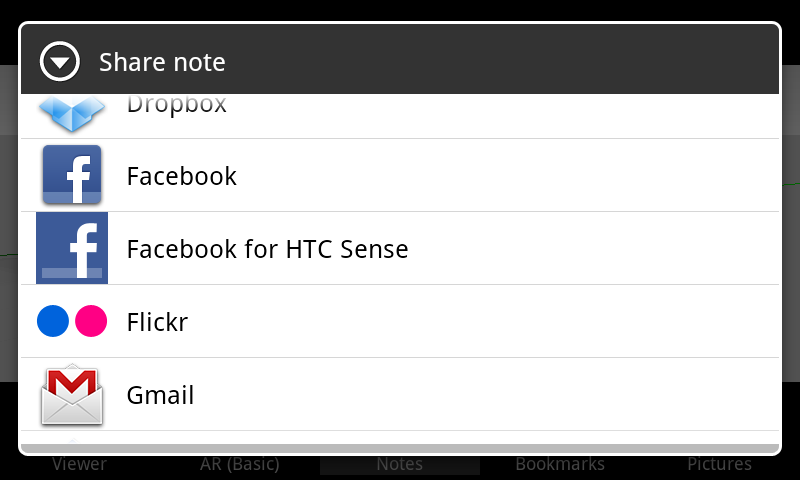

  Share notes by tapping on the note and selecting Email note from the Action button. Notes are emailed with a picture of the note location on the model.

  Delete notes by tapping on the note and selecting Delete note from the Action button.

• Photos

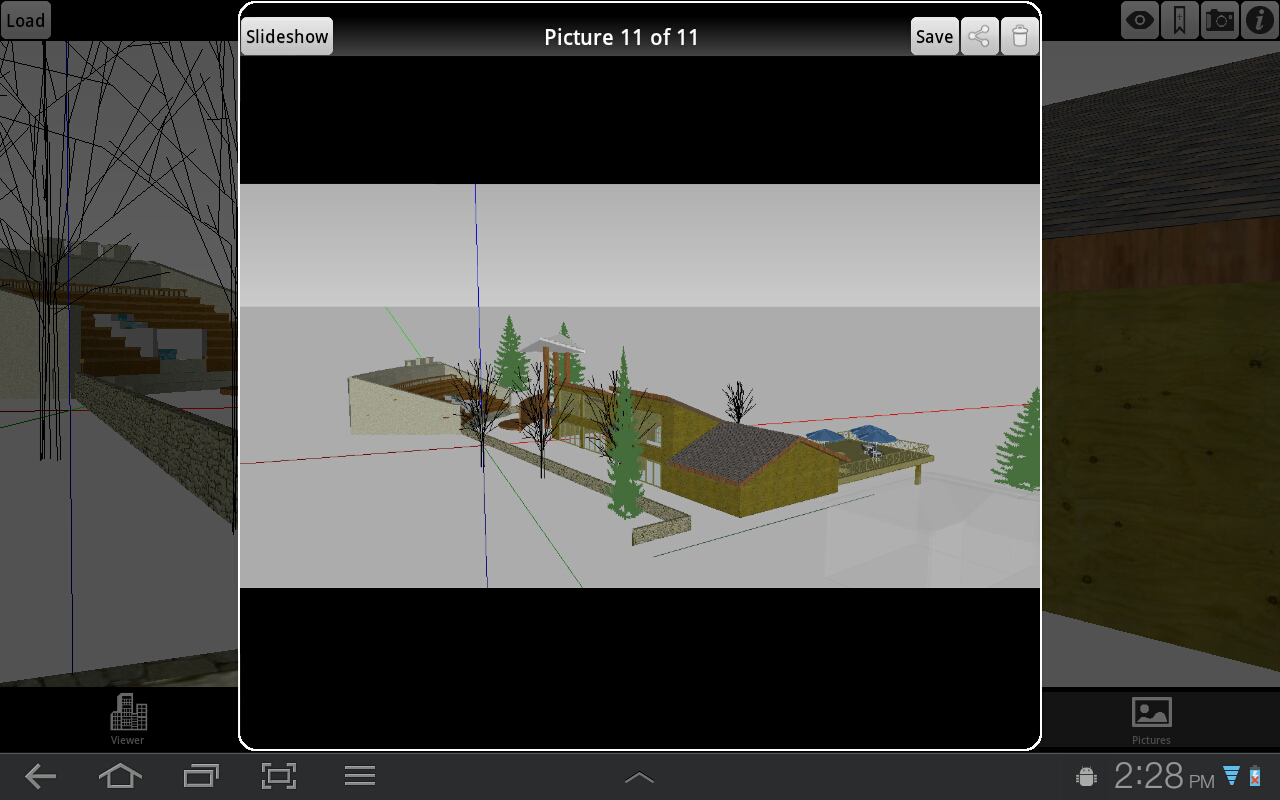

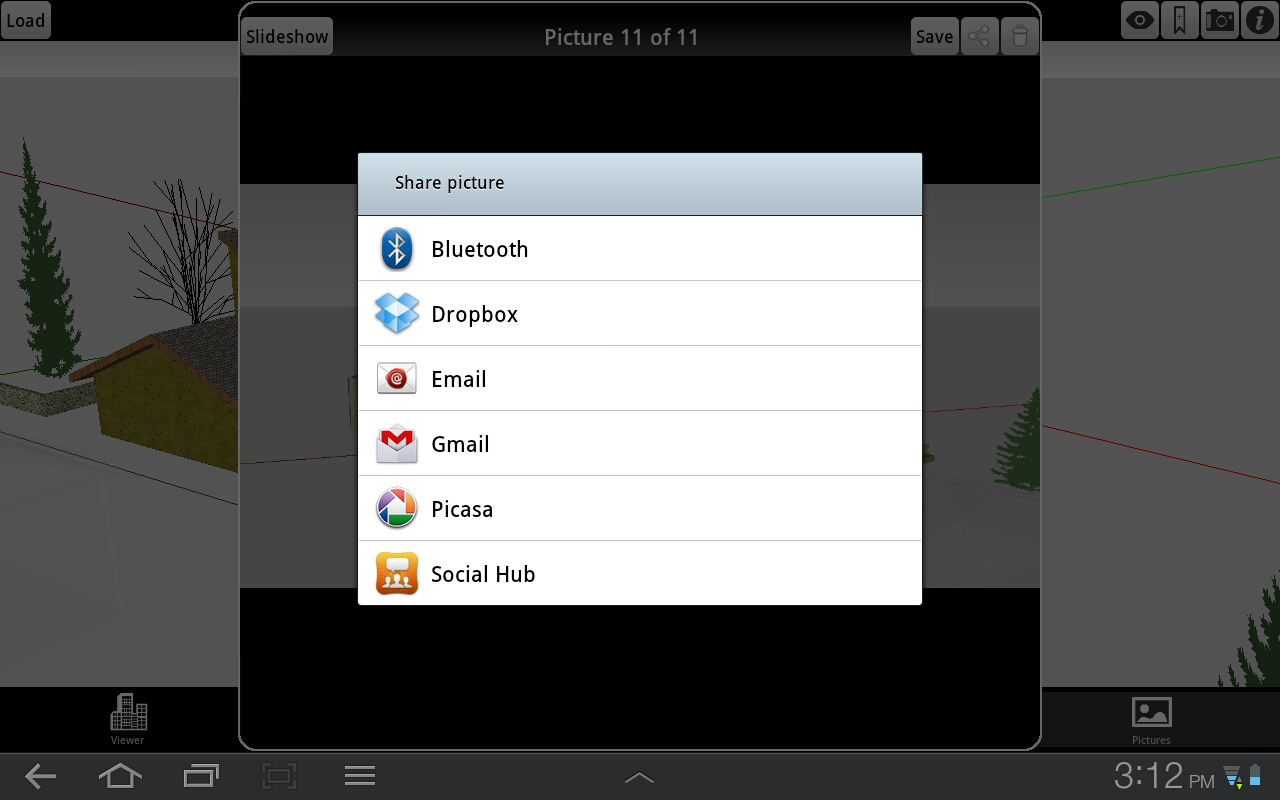

  The Photos Tab bar item displays images taken with the Camera button. Photo Actions include the option to Email Photo by selecting the desired image, selecting Email Photo, and emailing the recipient. Print and save to Photo Album are also available. Select Slideshow to enable a slideshow of all pictures associated with the model. Single finger swipe to move through pictures. Click on the Trashcan to delete the selected photo.

• Memory Messages

  SightSpace 3D utilizes a custom 3D engine to display the largest, most complex models possible and takes full advantage of the memory on iOS devices. This memory is limited and it is not possible to load every model. In these cases, you will receive a memory message (to prevent a crash). This section will suggest actions you can take to load the largest, most complex models possible.

  If you receive a recurrent memory message or an error, try the following:

  • Close all other running apps (double tap the Home key, hold App icon until minus appears, and tap the minus to close)
  • Optionally, after closing other apps, reboot your device - this gives the maximum amount of RAM for SightSpace 3D to use (press and hold the screen lock button for 5 seconds and follow the instructions to power off the device)
  • Lastly, if the above is insufficient, reduce model complexity

  Model complexity does not equal simple file size. Factors include geometry, materials, and components.

  Android devices contain two types of memory: Storage Space and RAM. Storage space memory is the GBs that your device has such as 16GB, 32GB, etc. RAM memory is used by all the running apps on the device and is limited. Memory messages you receive from SightSpace 3D will be a result of running out of RAM.

  Deleting music, photos, videos, apps, etc from your device will NOT fix the memory message.

• Settings

  Configure various model loading options for tuning performance and memory usage under Settings -> SightSpace. These options include the following:

  • Turning lines in models on/off: enables loading of larger models
  • Choose to display hidden geometry: this option is best used in conjunction with Google Earth .kmz files
  • Performance-Quality slider: choose between better performance and better model quality
  • Memory messages on/off: when your device is about to run out of available memory, a memory message will be displayed and SightSpace 3D will close to keep from crashing. Turning off Memory Messages will allow you to load the largest models possible but may also cause app crashes because this protection is now turned off.

Further questions? Call us at 877.663.3797 or email.
